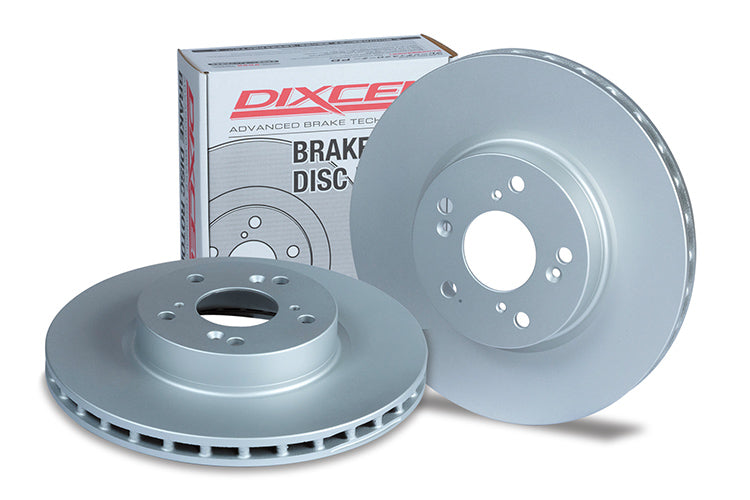

DIXCEL Front Brake Rotors - Subaru BRZ (ZC6/ZD8) / WRX STI (GDB) 5x100 / Toyota 86 (ZN6) / GR86 (ZN8) Brembo - 326x30mm
Upgrade your Subaru or Toyota's front braking performance with DIXCEL brake rotors, engineered in Japan and developed through decades of OEM supply and motorsport experience. DIXCEL rotors are designed to deliver consistent braking performance, stable pedal feel, and reliable control for daily driving through to more spirited use.
This listing covers the front axle of Brembo-equipped and STI-tuned models fitted with the 326mm front brake, including the Subaru BRZ tS (ZC6/ZD8), Toyota 86 (ZN6) GT and GTS with Brembo brakes, Toyota GR86 (ZN8) with Brembo brakes including the GTS Dynamic Performance Pack, and the Subaru Impreza WRX STI (GDB) 5x100 models. It also suits the Subaru Forester STI (SG9), Forester tS (SJ), Liberty 2.5 GT Tuned by STI (BL/BP), and the Japanese-market Exiga tS and STI-tuned Legacy models. Multiple rotor types are available, ranging from street-focused replacements to higher-performance applications. Use the product options on this page to select the rotor type best suited to your driving style and vehicle configuration.
Important: This rotor suits vehicles fitted with Brembo or STI front brakes and 326mm front rotors. It does not suit BRZ, 86 or GR86 models with the standard front brakes. On the WRX STI (GDB), it suits the earlier 5x100 PCD models only. Please measure or confirm your front rotor size before ordering.
Rotor Specifications
- DIXCEL Part Number: 3617003
- Outer Diameter (OD): 326mm
- Thickness (TH): 30mm
- Height (HT): 52.7mm
- Centre Bore (CB): 58mm
- Bolt Holes: 5
- PCD: 100mm
Vehicle compatibility, OEM part numbers, rotor specifications and fitment notes are provided in the tabs above. Please ensure your vehicle's year, trim level, and brake configuration are confirmed before ordering.
Not sure which rotor type is right for your vehicle? Contact our team at sales@dixcelshop.com.au for expert advice.
| Make | Model | Chassis | Year | Notes |
|---|---|---|---|---|
| Subaru | Impreza WRX STI | GD | 2002 - 2005 | 2.0L EJ207 Turbo / AWD / 4 Door Sedan / 5x100 / Factory Brembo Rear Brakes / Pre-Refresh |
Product Comparison
Select up to two products below to compare their technical specifications side-by-side.
Premium Type
Excellent braking power and dust reduction for European applications.
EC Type
A premium street pad for JDM cars, made for superior braking feel and low dust output
M Type
Ultra-low dust pad for clean wheels without sacrificing stopping power.
X Type
High stopping power for heavy SUVs. Effective with large diameter wheels.
ES Type
Entry-level sports pad with increased heat resistance and stable braking.
S Type
Street Sports pad ideal for lightweight vehicles. Firm rigid pedal touch.
Z Type
All-round performance. Best match for high grip radial tyres.
RE Type
ABS-compatible racing pad. Minimises ABS intervention for high-grip tyres.
RA Type
Racing pads pursuing high effectiveness and linear control for high-powered cars.
Specom-β
Endurance racing pad with exceptionally high wear resistance and stability.
Pad Specifications
| Feature | Pad A | Pad B |
|---|---|---|
| Intended Use | – | – |
| Target Vehicle | – | – |
| Friction Material | – | – |
| Bite Coefficient (µ) | – | – |
| Initial Bite Feel | – | – |
| Operating Temp | – | – |
| Dust Level | – | – |
| Rotor Wear | – | – |
| Tyre Match | – | – |
| Hardware Included | – | – |
* "YES*" denotes wear sensors are included on primary street applications where applicable. Track-only pads omit sensors due to extreme temperatures.
PD Type
Standard replacement rotor with factory-beating precision and anti-rust coating.
SD Type
Up to 20% more braking power with 6 offset slits for enhanced street and sports driving.
FP Type
Professional plain rotor with advanced heat treatment and 20% more carbon for ultimate crack resistance.
FS Type
The ultimate slotted racing rotor, combining high-carbon durability with enhanced initial bite.
2-Piece Assembly
Floating 2-piece structure prevents thermal judder, cuts weight, and allows outer ring replacement.
Rotor Specifications
| Feature | Rotor A | Rotor B |
|---|---|---|
| Intended Use | – | – |
| Target Stage | – | – |
| Material Structure | – | – |
| Surface Design | – | – |
| Anti-Rust Coating | – | – |
| Heat Treatment | – | – |
| Hub Structure | – | – |
| Key Benefit | – | – |
* Anti-rust coatings inhibit rust but do not completely prevent it on cast iron. Black finishing on 2-piece rotors wears to bare iron on the pad contact surface.
* Note: PD and SD type rotors may feature High Carbon (HC) material depending on the specific car model application.
