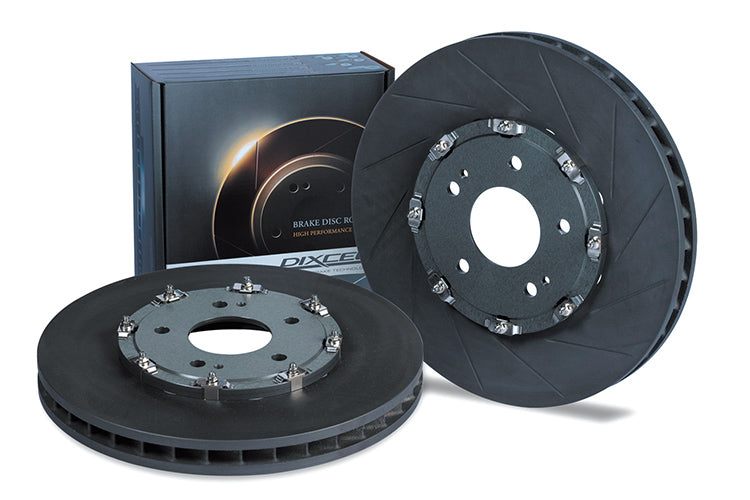

DIXCEL FS Two-Piece Front Brake Rotors - Subaru WRX STI S207 (VAB) / S206 (GVB) / R205 (GRB) / RA-R (GDB) - 6-Piston Brembo - 340x32mm
Upgrade your Subaru WRX STI's front braking performance with Dixcel FS two-piece brake rotors, engineered in Japan and developed through decades of OEM supply and motorsport experience. The FS series pairs a curved-slot cast iron disc ring with a lightweight aluminium centre hat, reducing rotating mass and unsprung weight while improving heat management for consistent performance under hard and repeated braking.
This listing covers the limited-edition Subaru WRX STI models fitted with the 6-piston front Brembo brake, including the WRX STI S207 (VAB), S206 (GVB), R205 (GRB) and RA-R (GDB). The disc ring is shared across these applications, with the centre hat suited to the relevant 5x100 (GDB) or 5x114.3 (GRB/GVB/VAB) wheel PCD.
Important: These rotors are directional and handed — the curved slots are side-specific, with separate left and right part numbers. Ensure both the correct left and right rotors are fitted. This rotor suits the 6-piston Brembo front brake only; please confirm your vehicle's brake configuration before ordering.
Rotor Specifications
- Dixcel Part Number: FSBS34032W76R (Right) / FSBS34032W77L (Left)
- Outer Diameter (OD): 340mm
- Thickness (TH): 32mm
- Type: Two-Piece Floating Disc / Curved Slot / Directional
- Wheel PCD: 100mm (GDB) / 114.3mm (GRB/GVB/VAB)
- Front 6-piston Brembo brake fitment
Vehicle compatibility, OEM part numbers, and fitment notes are provided in the tabs above. Please ensure your vehicle's year, trim level, and brake configuration are confirmed before ordering.
Not sure which rotor type is right for your vehicle? Contact our team at sales@dixcelshop.com.au for expert advice.
| Make | Model | Generation | Year | Notes |
|---|---|---|---|---|
| Subaru | Impreza WRX STI RA-R | GDB | 2006 - 2007 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 100 / Limited Edition |
| Subaru | Impreza WRX STI R205 | GRB | 2010 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 114.3 / Limited Edition |
| Subaru | Impreza WRX STI S206 | GVB | 2011 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 114.3 / Limited Edition |
| Subaru | WRX STI S207 | VAB | 2015 | 2.0L EJ207 I4 Turbo / 6-piston Brembo Front / PCD 114.3 / Limited Edition |
Product Comparison
Select up to two products below to compare their technical specifications side-by-side.
Premium Type
Excellent braking power and dust reduction for European applications.
EC Type
A premium street pad for JDM cars, made for superior braking feel and low dust output
M Type
Ultra-low dust pad for clean wheels without sacrificing stopping power.
X Type
High stopping power for heavy SUVs. Effective with large diameter wheels.
ES Type
Entry-level sports pad with increased heat resistance and stable braking.
S Type
Street Sports pad ideal for lightweight vehicles. Firm rigid pedal touch.
Z Type
All-round performance. Best match for high grip radial tyres.
RE Type
ABS-compatible racing pad. Minimises ABS intervention for high-grip tyres.
RA Type
Racing pads pursuing high effectiveness and linear control for high-powered cars.
Specom-β
Endurance racing pad with exceptionally high wear resistance and stability.
Pad Specifications
| Feature | Pad A | Pad B |
|---|---|---|
| Intended Use | – | – |
| Target Vehicle | – | – |
| Friction Material | – | – |
| Bite Coefficient (µ) | – | – |
| Initial Bite Feel | – | – |
| Operating Temp | – | – |
| Dust Level | – | – |
| Rotor Wear | – | – |
| Tyre Match | – | – |
| Hardware Included | – | – |
* "YES*" denotes wear sensors are included on primary street applications where applicable. Track-only pads omit sensors due to extreme temperatures.
PD Type
Standard replacement rotor with factory-beating precision and anti-rust coating.
SD Type
Up to 20% more braking power with 6 offset slits for enhanced street and sports driving.
FP Type
Professional plain rotor with advanced heat treatment and 20% more carbon for ultimate crack resistance.
FS Type
The ultimate slotted racing rotor, combining high-carbon durability with enhanced initial bite.
2-Piece Assembly
Floating 2-piece structure prevents thermal judder, cuts weight, and allows outer ring replacement.
Rotor Specifications
| Feature | Rotor A | Rotor B |
|---|---|---|
| Intended Use | – | – |
| Target Stage | – | – |
| Material Structure | – | – |
| Surface Design | – | – |
| Anti-Rust Coating | – | – |
| Heat Treatment | – | – |
| Hub Structure | – | – |
| Key Benefit | – | – |
* Anti-rust coatings inhibit rust but do not completely prevent it on cast iron. Black finishing on 2-piece rotors wears to bare iron on the pad contact surface.
* Note: PD and SD type rotors may feature High Carbon (HC) material depending on the specific car model application.
