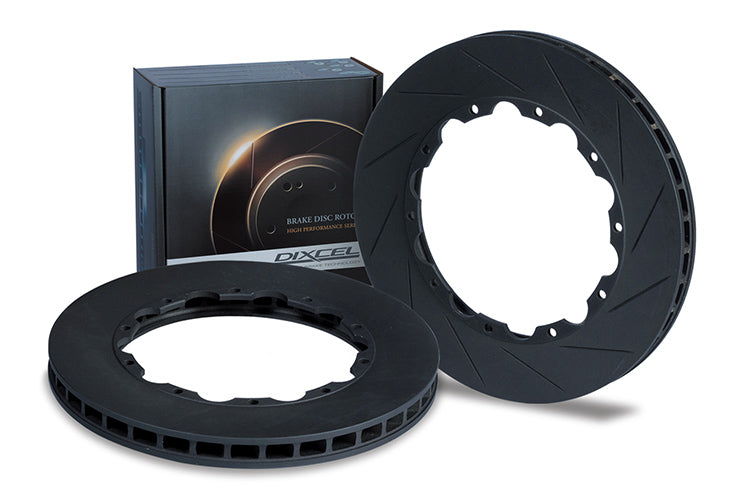

Dixcel FS Replacement Front Rotor Rings (Pair) - Subaru WRX STI R205 (GRB) / S206 (VAB) - 340x32mm
Refresh your Subaru WRX STI R205 or S206's factory two-piece Brembo big brake kit with Dixcel FS replacement rotor rings, engineered in Japan and developed through decades of OEM supply and motorsport experience. Dixcel rotor rings are designed to deliver consistent braking performance, stable pedal feel, and reliable control under demanding circuit and trackday conditions, while preserving the aluminium centre hats, mounting bobbins, and hardware from your factory STI two-piece BBK.
This listing covers a matched left and right pair of 340x32mm Dixcel FS replacement front friction rings (part number FS-34032W76R/77L) for the rare JDM Subaru WRX STI R205 (GRB, 400 units, 2010) and S206 (VAB, 300 units, 2012) Subaru Tecnica International limited editions. Both cars were fitted with factory-equipped two-piece Brembo brake hardware as part of their NBR Challenge homologation development. The ring-only design preserves your factory aluminium centre hats and mounting hardware, allowing significant cost savings over a complete rotor assembly replacement when only the friction ring is consumed.
Compatible Vehicle Applications
- Subaru WRX STI R205 (GRB) - 2010 JDM Limited Edition (400 units) - Factory STI two-piece Brembo BBK
- Subaru WRX STI S206 (VAB) - 2012 JDM Limited Edition (300 units) - Factory STI two-piece Brembo BBK
- Subaru WRX STI S206 NBR Challenge Package (VAB) - 2012 JDM Limited (100 units) - Factory STI two-piece Brembo BBK
Rotor Ring Specifications
- Dixcel Part Number: FS-34032W76R/77L (paired set)
- Outer Diameter: 340mm
- Thickness: 32mm
- Inner Diameter / Hat Bore: 217mm
- Mounting PCD: 202mm
- Mounting Holes: 10
- Application: Factory STI two-piece Brembo BBK (Front)
- Sold As: Pair (Left and Right)
- Origin: Made in Japan
Important Fitment Notes
- This product is a replacement rotor ring only - aluminium centre hats, mounting bobbins, and hardware are NOT included. You must reuse the factory STI hat and hardware from your existing two-piece BBK.
- Designed as a direct OEM-replacement for the factory STI two-piece Brembo front rotor fitted to the R205 and S206 limited editions.
- Standard WRX STI (GRB / GVB / VAB) variants are NOT fitted with two-piece Brembo brakes from the factory and require a different rotor.
- If your vehicle has been retrofitted with an aftermarket BBK, confirm rotor dimensions, mounting PCD, and bolt pattern match the specifications above before ordering.
Vehicle compatibility, rotor specifications, and fitment notes are provided in the tabs above. Please ensure your vehicle's variant, brake hardware, and rotor specifications are confirmed before ordering.
Not sure if these rings suit your R205 or S206? Contact our team at sales@dixcelshop.com.au for expert advice.
| Make | Model | Chassis | Year | Notes |
|---|---|---|---|---|
| Subaru | WRX STI R205 | GRB | 2010 | 2.0L EJ207 Turbo / JDM Limited (400 units) / STI Tecnica International / Factory Two-Piece Brembo BBK / 5 Door Hatch |
| Subaru | WRX STI S206 | VAB | 2012 | 2.0L EJ207 Turbo / JDM Limited (300 units) / STI Tecnica International / Factory Two-Piece Brembo BBK / 4 Door Sedan |
| Subaru | WRX STI S206 NBR Challenge Package | VAB | 2012 | 2.0L EJ207 Turbo / JDM Limited (100 units) / STI Tecnica International / Factory Two-Piece Brembo BBK / 4 Door Sedan |
Product Comparison
Select up to two products below to compare their technical specifications side-by-side.
Premium Type
Excellent braking power and dust reduction for European applications.
EC Type
A premium street pad for JDM cars, made for superior braking feel and low dust output
M Type
Ultra-low dust pad for clean wheels without sacrificing stopping power.
X Type
High stopping power for heavy SUVs. Effective with large diameter wheels.
ES Type
Entry-level sports pad with increased heat resistance and stable braking.
S Type
Street Sports pad ideal for lightweight vehicles. Firm rigid pedal touch.
Z Type
All-round performance. Best match for high grip radial tyres.
RE Type
ABS-compatible racing pad. Minimises ABS intervention for high-grip tyres.
RA Type
Racing pads pursuing high effectiveness and linear control for high-powered cars.
Specom-Ξ²
Endurance racing pad with exceptionally high wear resistance and stability.
Pad Specifications
| Feature | Pad A | Pad B |
|---|---|---|
| Intended Use | β | β |
| Target Vehicle | β | β |
| Friction Material | β | β |
| Bite Coefficient (Β΅) | β | β |
| Initial Bite Feel | β | β |
| Operating Temp | β | β |
| Dust Level | β | β |
| Rotor Wear | β | β |
| Tyre Match | β | β |
| Hardware Included | β | β |
* "YES*" denotes wear sensors are included on primary street applications where applicable. Track-only pads omit sensors due to extreme temperatures.
PD Type
Standard replacement rotor with factory-beating precision and anti-rust coating.
SD Type
Up to 20% more braking power with 6 offset slits for enhanced street and sports driving.
FP Type
Professional plain rotor with advanced heat treatment and 20% more carbon for ultimate crack resistance.
FS Type
The ultimate slotted racing rotor, combining high-carbon durability with enhanced initial bite.
2-Piece Assembly
Floating 2-piece structure prevents thermal judder, cuts weight, and allows outer ring replacement.
Rotor Specifications
| Feature | Rotor A | Rotor B |
|---|---|---|
| Intended Use | β | β |
| Target Stage | β | β |
| Material Structure | β | β |
| Surface Design | β | β |
| Anti-Rust Coating | β | β |
| Heat Treatment | β | β |
| Hub Structure | β | β |
| Key Benefit | β | β |
* Anti-rust coatings inhibit rust but do not completely prevent it on cast iron. Black finishing on 2-piece rotors wears to bare iron on the pad contact surface.
* Note: PD and SD type rotors may feature High Carbon (HC) material depending on the specific car model application.
