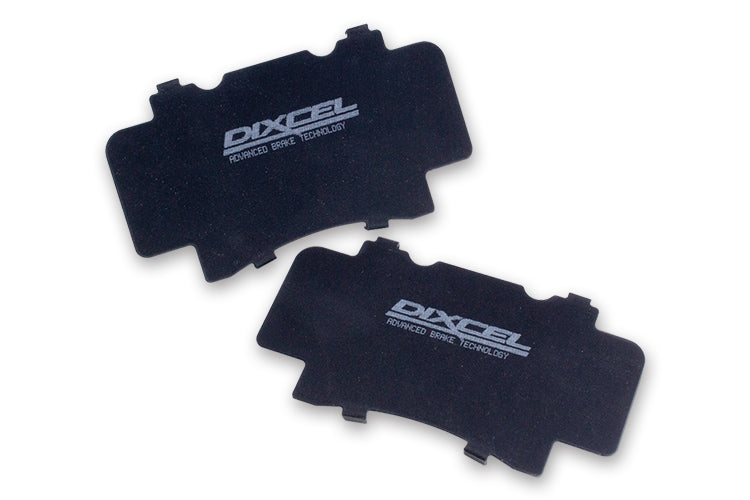

DIXCEL Anti-Squeal Brake Pad Shims (4-Piece Set) for Rear Calipers
DIXCEL - Advanced brake technology. Eliminate unpleasant brake noise and improve your daily driving experience with DIXCEL Anti-Squeal Brake Pad Shims. During braking, friction between the brake pads and disc rotor generates high-frequency vibrations. When these vibrations are transmitted to the caliper piston, it results in annoying brake squeal. By installing these specially engineered shims directly onto the back of your rear brake pads, the vibrations are effectively absorbed and reduced to inaudible levels.
Each shim features a highly effective three-layer structureβconsisting of a durable stainless steel core sandwiched between vibration-absorbing resin layersβto block and suppress noise transmission.
Installation Guide: Cleanly remove any dirt and oil from the back plate of the brake pads. Attach the shim securely without any gaps to match the shape of the pad backing. After application, apply brake grease as needed, then install the pads and check brake operation.
Crucial Note: Please do not stack these with the standard stainless steel shims that come with your vehicle or pads. Stacking them will unnecessarily increase thickness, which can cause the brake pads to drag or make installation impossible. Additionally, squeaking caused by heavily worn rotors or degraded hardware may not be completely eliminated by shims alone.
| Make | Model | Chassis | Year | Notes |
|---|---|---|---|---|
| Subaru | WRX STI | Various | All | Rear Calipers Only |
| Mitsubishi | Lancer Evolution | Various | All | Rear Calipers Only |
Product Comparison
Select up to two products below to compare their technical specifications side-by-side.
Premium Type
Excellent braking power and dust reduction for European applications.
EC Type
A premium street pad for JDM cars, made for superior braking feel and low dust output
M Type
Ultra-low dust pad for clean wheels without sacrificing stopping power.
X Type
High stopping power for heavy SUVs. Effective with large diameter wheels.
ES Type
Entry-level sports pad with increased heat resistance and stable braking.
S Type
Street Sports pad ideal for lightweight vehicles. Firm rigid pedal touch.
Z Type
All-round performance. Best match for high grip radial tyres.
RE Type
ABS-compatible racing pad. Minimises ABS intervention for high-grip tyres.
RA Type
Racing pads pursuing high effectiveness and linear control for high-powered cars.
Specom-Ξ²
Endurance racing pad with exceptionally high wear resistance and stability.
Pad Specifications
| Feature | Pad A | Pad B |
|---|---|---|
| Intended Use | β | β |
| Target Vehicle | β | β |
| Friction Material | β | β |
| Bite Coefficient (Β΅) | β | β |
| Initial Bite Feel | β | β |
| Operating Temp | β | β |
| Dust Level | β | β |
| Rotor Wear | β | β |
| Tyre Match | β | β |
| Hardware Included | β | β |
* "YES*" denotes wear sensors are included on primary street applications where applicable. Track-only pads omit sensors due to extreme temperatures.
PD Type
Standard replacement rotor with factory-beating precision and anti-rust coating.
SD Type
Up to 20% more braking power with 6 offset slits for enhanced street and sports driving.
FP Type
Professional plain rotor with advanced heat treatment and 20% more carbon for ultimate crack resistance.
FS Type
The ultimate slotted racing rotor, combining high-carbon durability with enhanced initial bite.
2-Piece Assembly
Floating 2-piece structure prevents thermal judder, cuts weight, and allows outer ring replacement.
Rotor Specifications
| Feature | Rotor A | Rotor B |
|---|---|---|
| Intended Use | β | β |
| Target Stage | β | β |
| Material Structure | β | β |
| Surface Design | β | β |
| Anti-Rust Coating | β | β |
| Heat Treatment | β | β |
| Hub Structure | β | β |
| Key Benefit | β | β |
* Anti-rust coatings inhibit rust but do not completely prevent it on cast iron. Black finishing on 2-piece rotors wears to bare iron on the pad contact surface.
* Note: PD and SD type rotors may feature High Carbon (HC) material depending on the specific car model application.
